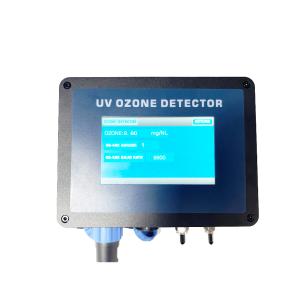

Mic300oz Ozone Analyzer for Ozone Concentration Detection in
Pharmaceutical Pipelines
MIC300OZ OZONE DETECTOR is a microprocessor-based dual beam
photometer(UV 254 nm) for measuring the ozone content in air or
oxygen. To evaluate the ozone content in the sample gas the
MIC300OZ OZONE DETECTOR measures the UV radiation in the
measurement channel, the UV radiation in the reference channel, the
temperature and the pressure in the cuvette. The ozone analyzer has
touch screen operation interface, which shows the real-time ozone
concentration. And the touch screen is also with pressure &
temperature compensation display. For the high concentration
(g/Nm3) range, it has the function of flow input, which can display
the output of the ozone generator in real time. The core component
adopts long-life uv light system with the high light transmittance
quartz to prevent zero drifting from affecting the detection
accuracy. It's no need to close ozone inputing when zeroing to
ensure the equipment can run continuously 24 hours. The ozone
concentration is displayed in either percent weight of ozone
(%wt/wt), grams of ozone per normal cubic meter of sample gas
(g/Nm3) or ppmv (AQ: g/m3 or ppm) on alphanumeric display. The
concentration unit can be changed during operation.
Measurement features: patented technology with zero point automatic
adjustment function, dual path ultraviolet absorption principle,
foreign long-life ultraviolet LED light source, continuous
operation, ensuring the stability of detection concentration.
Test method: Dual path UV absorption method, long-life light source
system, high measurement accuracy.
Measurement principle: According to the Lambert Beer law, accurate
measurements are made through the principle of photometric
absorption.
Light source system: Foreign long-life ultraviolet light source
system (ultraviolet LED light source with lens), with a free
warranty of 2 years.
Usage: It is recommended to install and use it indoors, equipped
with waterproof aviation plugs.
Light pool system: Separate light pool technology, leak free, high
pressure resistance, and resistance to high flow sampling gas
impact.
Intelligent compensation: Built in temperature and pressure
compensation and display, with automa
| Model | MIC300OZ |
| Measuring range | 0-200g/Nm3 (0-300g/Nm3, 0-100g/Nm3, 0-50g/Nm3) |
| Light source life | approximately 30000-50000 hours |
| Sampling mode | positive pressure sampling |
| Display interface | 4.3-inch touch screen operation interface |
| Content interface | Ozone concentration, temperature, pressure |
| Auxiliary functions | Temperature compensation, pressure compensation |
| Display units | g/Nm3, mg/NL optional |
| Display resolution | 0.01g/Nm3 |
| Gas flow | 0.5L ± 0.2L/min |
| Input pressure | <0.1 MPa |
| Concentration error | ±0.5%FS |
| Linearity error | ±0.5%FS |
| Zero point drift | <±0.3%.FS |
| Response time | ≤ 1 second |
| Ambient temperature | -30~80 ºC |
| Piping interface mode | quick tightening (stainless steel) |
| Bypass sampling aperture | Φ6 (6mm*4mm) |
| Communication method | RS-485 |
| Output mode | 4-20mA (active) |
| Power supply | 24V DC |
| Dimensions | 120mm (H) * 160mm (W) * 60mm (D), |
| Note | 1mg/L = 1g/m3 = 467PPM. |
| Free warranty | 24 months (host) |
| Range | Sampling Method | Application Areas |
| 0-300g/Nm3 | Active pressure sampling, with pressure,temperature compensation | Real-time detection of ozone generator outlet concentration |
| 0-100g/Nm3 | Active pressure sampling, with pressure,temperature compensation | Real-time detection of ozone generator outlet concentration |
| 0-50g/Nm3 | Active pressure sampling, with pressure,temperature compensation | Real-time detection of ozone generator outlet concentration |
Ozone generator manufacturers, municipal water industry, industrial
sewage industry, fine chemical industry, food and drinking water
industry, space disinfection industry, pool disinfection industry,
flavor synthesis industry and other industries using ozone
generator.
