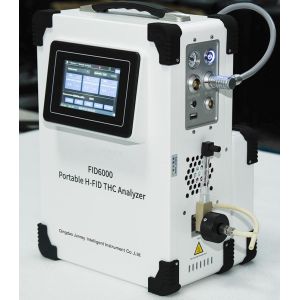

FID6000 Portable H-Fid Thc Analyzer On Site

Ask Lasest Price
Brand Name :	HiYi
Model Number :	Fid6000
Certification :	CE
Price :	USD 11500 ~12000 PER PCS
Payment Terms :	L/C, D/A, D/P, T/T
Supply Ability :	1000/set/month
Delivery Time :	5-7 work days

Add to Cart

Product Details
Company Profile

FID6000 Portable H-Fid Thc Analyzer On Site

Fid6000 Portable H-Fid Thc Analyzer

OVERVIEW

FID6000 is a Portable On-site FID Analyzer to measure THC (Total Hydrocarbons) from Stack Emissions.

The miniaturization of the flame ionization detector (FID) and volumetric sampling system results in a outstanding energy savings and thus allows the use of built-in rechargeable batteries. It also ensures the highest accuracy and repeatability of sequences of analysis.

It is widely used in organic chemical factories, surface coating industry, printing and dyeing industry, furniture manufacturing industry, automobile manufacturing industry, pharmaceutical industry and other industries.

FEATURES

1. High Test Efficiency

> The preheating time of the system is less than 15 min.

> New catalyst ensure high conversion efficiency (≥95%)

> Full process heat tracing to avoid condensation loss of high temperature and high humidity gas samples, temperature up to 180 ºC, with no freezing point.

> The pipeline is silanized to reduce sample adsorption.
FID6000 Portable H-Fid Thc Analyzer On Site

2. Lightweight & Economic use

> Weight<7kg, built a suitcase, light to carry.

> High stability of analysis values and low maintenance costs.

> Rechargeable battery, for at least 4 hours.

> The concentration can be automatically calibrated, and the range can be automatically switched.

> Manual operators can be equipped for wireless transmission. (Optional)

FID6000 Portable H-Fid Thc Analyzer On Site
3. Powerful Data Processing Functions

> Data storage capacity>10,000 group.

> Data file automatic recording and storage, historical data query, reprocessing and printing functions.

> Test data can be exported in Excel file and printed by Bluetooth printer.

4. Expandability

Can expand to test THC, NMHC (Non-Methane Hydrocarbons), CH₄ (Methane) and O₂, and moisture content in stationary source emission and fence line. (FID 6000+)

5. Low cost of consumables

> Equipped with replaceable H2 metal cylinder which has a large capacity, long service life, and safety.

6. Application

7. Packing List

1, Host
2, Portable suitcase
3, Portable bag for sampling tube
4, Solid storage cylinder
5, Power cord
6, Battery cable
7, Battery
8, Blue-tooth printer
9, Sampling tube
10, Spare Titanium sampling head
11, Spare filter element
13, Hydrogen regulator
14, Allen wrench

1, Host
2, power adapter
3, smoke temperature wire
4, silicone rubber tube (bule & orange)
5, Main aluminum box
6, product manual
7, ZR-D06B TMS probe & Accessory box

SPECIFICATION

Test Method	Catalytic oxidation-FID
Max temperature Sample Inlet	180ºC
Detect limit	≤0.13ppm
Measurement Range	0~10,000 ppm
Detection Limit	≤0.13 ppm (0.07mg/m³ Calculated by carbon)
Linearity	≤±2.0% FS
RSD	≤2.0 % (CH4)
Recovery rates of Standard Addition	80%~120%
Response time	≤ 30s
Parallelism	≤5.0%
Conversion efficiency	≥95%
Data Storage	10,000 groups
Battery	Equipped with lithium battery ≥ 4h
Gas support	H2	Continuous use at full capacity for ≥ 8 h
Weight	Host	6.8kg
	Host + Gas cylinder	7.5kg
	Host + Gas cylinder + Battery	10.7kg
Dimension	(H350L240W124)mm
Consumption	≤400W
Operating Environment	DC24V or AC(220±10%)V/(50±2%) Hz -15ºC~45ºC, <95%RH
